Cut-to-Length Lines

Cut-to-length lines take flat rolled steel or coiled steel,
unroll it, level it and cuts it to a desired length sheet.
Cut-to-length lines are also known as shear lines,
blanking lines or level lines.

Cut-to-length lines are either:

• Start/Stop (heavy gauge metal processing)
• Free Loop (lighter gauge metal processing)

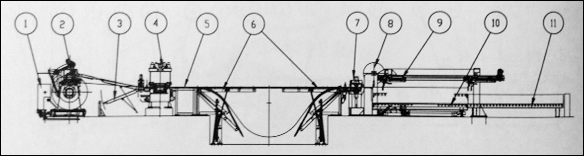

Cut-to-Length Line standard components:

1. Coil Car
2. Uncoiler
3. Edge Guide System
4. Peeler/Pinch Rolls
5. 19 Rolls Leveller
6. Looping Pit Table
7. Servo Driven Feed-Rolls
8. High Speed Shear
9. Air Stacker
10. Stacking Table
11. Run-Out Table
12. Line Electrics
13. Line Hydraulics
14. Line Engineering

---

Nova Machinery & Engineering Inc. manufactures custom steel coil processing equipment. Nova products are available from Coil Processing Equipment Consultants.
If you need more information or a quote call 847-707-7185.
