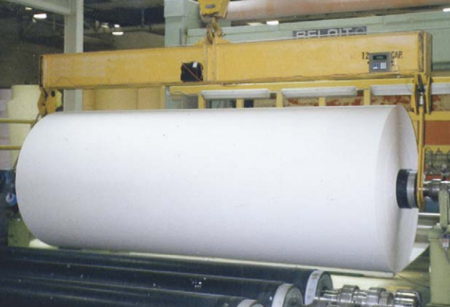

Roll Lifting Beam

Used to lift rolls with plate style or bent bar J-Hooks. Hooks are designed to support the core mandrel which is through the I.D. of the roll. Fixed beam lengths can be used for single roll widths. Maximum roll diameters will determine length of J-Hooks.

PRODUCT FEATURES:

• Ideal where headroom is limited.
• Easy lifting and positioning of rolls.
• Adjustable spread options.
• Twin hoist capability.
• Motorized rotation available.
• Complies with ASME standards.

PRODUCT SPECIFICATIONS:

Adjustable Spreads: Used when handling rolls of varying widths.

Hook Linings:
a. Bronze / Brass
b. Urethane
c. Brake Lining (min. shaft dia. = 6″)

Twin Balls: Used when two hoists are required to stabilize a lift, when load rotation is not desirable.

Motorized Rotation: Allows remote positioning of a load.

Spreader Beam: Offers a greater stability when required headroom is not a consideration.
