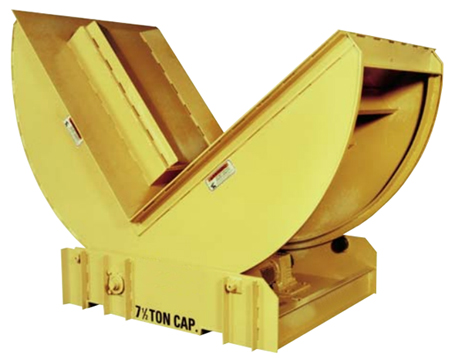

Heavy Duty Coil Upender

PRODUCT FEATURES:

  • Fast and convenient way to upend coils to 90°.
  • Heavy duty disc brake will stop load in any position.
  • Reversing magnetic starter with 115 volt pendant control.
  • Stop travel/over travel limit switches.

PRODUCT OPTIONS:

heavy-duty-coil-updender

  • Larger platforms available.
  • V-Block, either standard or urethane faced.
  • 180° horizontal rotation which permits loading, and unloading from same side.
  • Fork lift truck pick-up pockets.

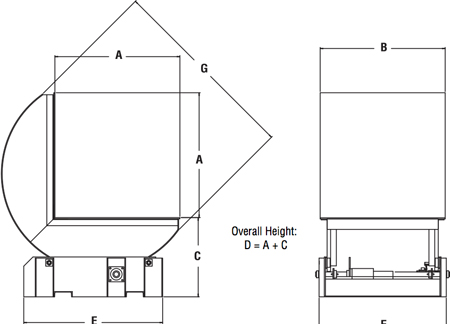

heavy-duty-coil-updender-diagram

NOTE: Additional data may be required to properly size the drive system. Load information including dimensions and center of gravity should be provided.

Heavy Duty Coil Updender

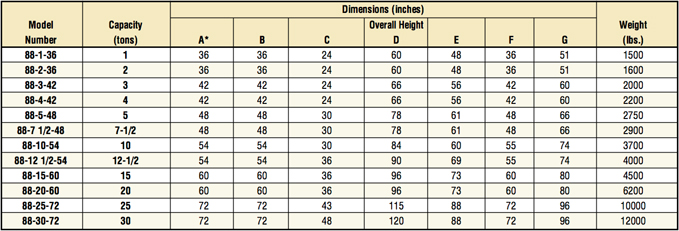

*Coil center of gravity must be 1/2 of ‘A’. If different please specify coil or load information. Pallets must not extend over platform sides. Other sizes available, call for details.
