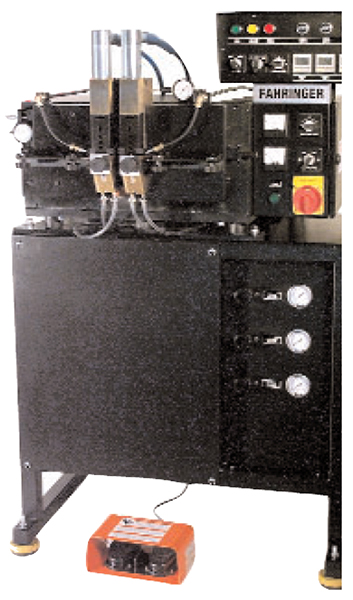

FW Series Flash Welders

Our state-of-the-art FW-Series flash welders are all PLC controlled
with built-in automated 2-stage annealing. We offer both manual
and automatic cycling models, all with solid-state voltage control.
Fixed vertical alignment, extremely rigid clamping and standard
water-cooling offer maximum durability under heavy production.
These welders also combine a large capacity transformer with very
high upset force to produce stronger welds than other welders.
All weld parameters are independently adjustable for maximum
flexibility in fine-tuning. Dial indicators display weld cut-off
moment and jaw gap for precise forging length and tooth matching.

STANDARD FEATURES:

• PLC control
• Large 15 KVA transformer
• Standard 220 volts, Single phase (other voltages available)
• Water-cooled carriages
• Digital, programmable motor control
• Precision weld cut-off control for more consistent welds
• Adjustable weld parameters: Jaw Gap, Timing, Weld Voltage, Upset Force, Flashing Speed
• Automated 2-stage anneal control with on-the-fly adjustment
• Audio-Visual malfunction alarms

FW-200 HPA

The FW-200 HPA is a Hydraulic clamp, Pneumatic upset, Automatic cycling welder designed to weld carbon and bi-metal blades from .25” x .020” thru 2” x .065”.

FW Series  200 HPA FEATURES:

• Hydraulic clamping with foot pedal actuation
• Pneumatic forging (up to 2,250 lbs.)
• Air blow-off
• 3 operating modes: Automatic, Manual, Weld Only



FW-200 HSA

The FW-200 HSA is a Hydraulic clamp, Spring upset, Automatic cycling welder designed to weld carbon blades from .25” x .020” thru 2” x .050” and bi-metal blades from .25” x .020” thru 1.5” x .050”.

FW Series 200 HSA FEATURES:

• Hydraulic clamping with foot pedal actuation
• Spring forging (up to 700 lbs.)
• Air blow-off
• 3 operating modes: Automatic, Manual, Weld Only
• Spring pressure relief during annealing

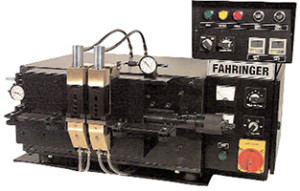

FW-200 HS

The FW-200 HS is a Hydraulic clamp, Spring upset welder designed to weld carbon blades from .25” x .020” thru 2” x .050” and bi-metal blades from .25” x .020” thru 1.5” x .050”.

FW Series 200 HS FEATURES:

• Hydraulic clamping with foot pedal actuation
• Spring forging (up to 700 lbs.)
• 2 operating modes: Normal, Weld Only
• Spring pressure relief during annealing

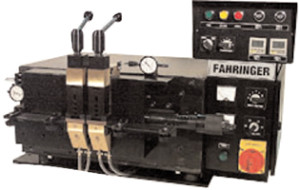

FW-200 MS

The FW-200 MS is a Manual clamp, Spring upset welder designed to weld carbon blades from .25” x .020” thru 2” x .050” and bi-metal blades from .25” x .020” thru 1.25” x .042”.

FW Series 200 MS FEATURES:

• Spring forging (up to 700 lbs.)
• 2 operating modes: Normal, Weld Only
• Spring pressure relief during annealing
