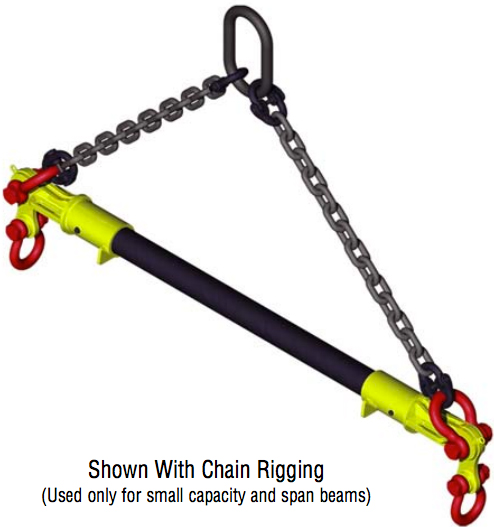

High Capacity Spreader Beam

Our High Capacity Spreader Beam is the solution you need to fill those
orders where a quick delivery is required on beams with capacities
ranging from 5 to 130 tons. Capacity and spread configurations are
virtually limitless.

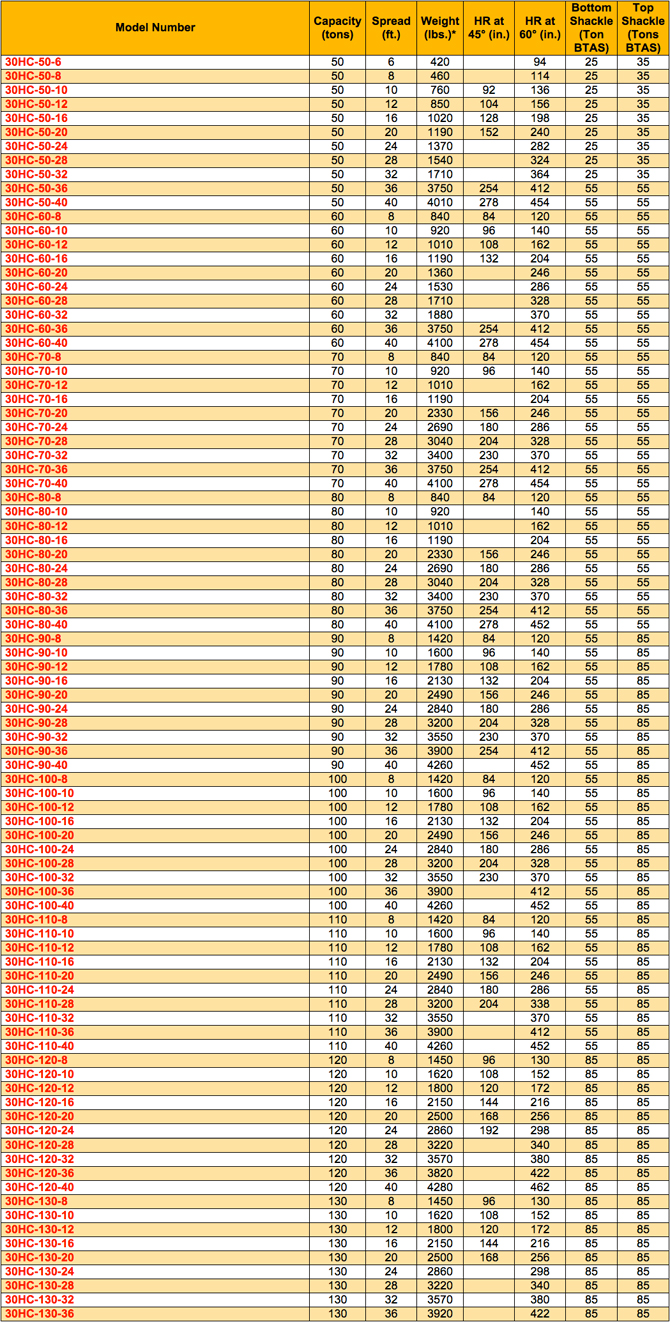

The chart below highlights sizes available from 50 to 130 tons. For beam
customizations, please call or email us and we will configure the high
capacity spreader beam you need!

PRODUCT FEATURES:

• Unique pivoting lower lugs allow for 75° to 90° lower rigging angle.
• Capacities from 5 to 130 tons.
• Beam only available in 7 – 10 days.
• Optional wire rope top rigging available.
• Complies with ASME standards.

SPECIFICATIONS:
