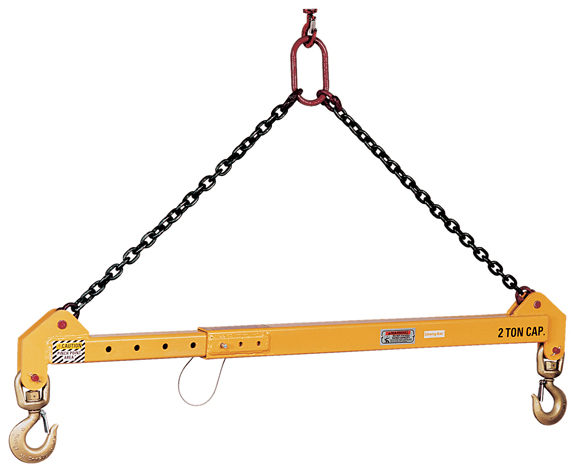

Adjustable Spreader

This is an adjustable spreader beam that provide a versatile
solution for handling many different sized loads, ideal for
outdoor applications.

PRODUCT FEATURES:
Ideal where headroom is not limited.
Adds stability to lift.Telescopic spread standard.
Available with standard chain or wire rope rigging.
Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
Wide range of additional sizes and capacities available.
Complies with ASME standards.

TOP RIGGING OPTIONS:
OPTION C – Chain top rigging from beam to crane hook.
OPTION W – Wire rope top rigging from beam to crane hook.
OPTION A – Adjust-A-Leg® sling top rigging for off-center load adjustment.

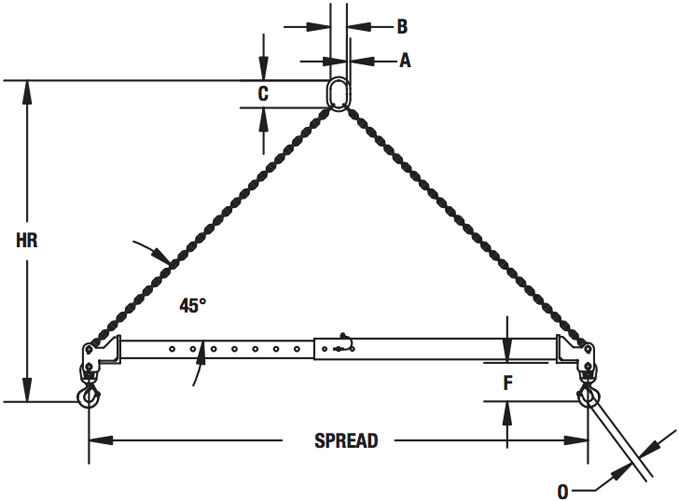

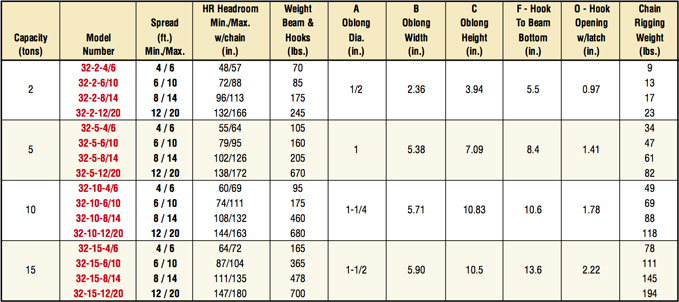

SPECIFICATIONS:
